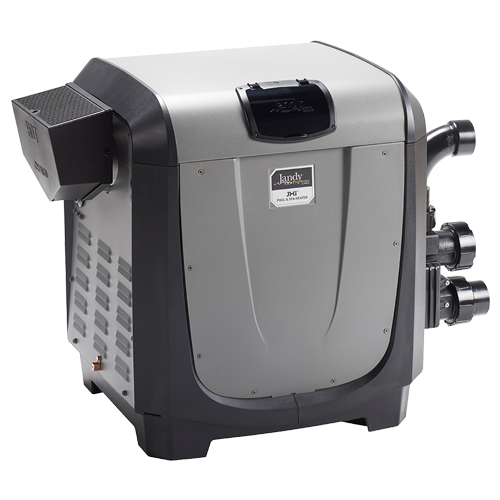

Jandy JXi HEATER
THE TOTAL PACKAGE
The JXi sets a new standard in pool and spa heating technology with its ultra-compact size, lightweight design, and installation flexibility, making it a top choice for pool professionals and pool owners everywhere. The high-efficiency, low-NOx JXi pool and spa heater is available in three BTU sizes, 200K, 260K, 399K, and offered in both natural and propane gas models.
JANDY JXi HEATER
Pro-driven features for the fastest, most customer-friendly pool heater installation include:
Ultra-compact, 2'x2' footprint for small space requirements and maximum installation flexibility*
Lightweight design, weighs less than 126 pounds unpackaged, for easy maneuverability and transport
Best retrofit option, no plumbing adjustments required for quick and easy replacement of Mastertemp® and Max-E-Therm® heaters
84% thermal efficiency rating and low-NOx design surpasses strict DOE energy-efficiency requirements**
VersaFlo Integrated Bypass technology for JXi available installed from the factory (select models) or as an easy retrofit to any JXi on site.
Offers up to 20 percent additional energy savings***
Automatic actuation of flow bypass valve is based on call for heat and does not require human interaction
The flow bypass valve is integrated into the JXi's header, requiring no external plumbing modifications
The hydraulic savings of VersaFlo make it the perfect complement to Versa Plumb®, which reduces plumbing costs and maximizes energy efficiency in the smallest footprint available
|MODEL NUMBER||FIRING RATE||HEATER WIDTH||VENT DIAMETER||DEPTH||HEIGHT||WEIGHT||MIN. GPM||MAX GPM|
|JXi200||200K BTU||22.9"||6"||22.1"||26.5"||117 lbs||30||100|
|JXi260||260K BTU||22.9"||7"||22.1"||26.5"||120 lbs||30||100|
|JXi400||399K BTU||22.9"||8"||22.1"||26.5"||126 lbs||30||100|
Corrosion-resistant stainless steel header bar for extreme heat exchanger durability.
Venturi-driven air and gas mix for enhanced performance.
Reliable, balanced flow and temperature control with thermal regulator valve.
Differentiated limit switches meet applicable product safety standards.
Corrosion-resistant temperature sensors for reliable operation.
